Hard work is its daily bread
MU-Farmer® 670
Twice the safety with two rows high tempered
one way spring steel protections flaps.
Power in reserve: The solid, generously dimensioned rotor.
Indestructible: Made out of rolled steel and weighing 2.7 kg, the MU-Farmer® hammer flails ensure a long service life even under high throughput of plant mass or with light ground contact.
Trouble-free and low-maintenance operation due to the efficient design of the automatic belt tensioning system.
Powerful drive on both sides for up to 300 hp of driving power. Durability even under the toughest conditions thanks to the sturdy frame structure of the housing.
Quickly ready for operation: Uncouple the machine and bring the lengthways transport device into the work position / couple the MU-Farmer® 670 to the tractor with the quick coupling bar and connect the PTO shaft.
Quickly ready for operation: Uncouple the machine and bring the lengthways transport device into the work position / couple the MU-Farmer® 670 to the tractor with the quick coupling bar and connect the PTO shaft.
Quickly ready for operation: Uncouple the machine and bring the lengthways transport device into the work position / couple the MU-Farmer® 670 to the tractor with the quick coupling bar and connect the PTO shaft.

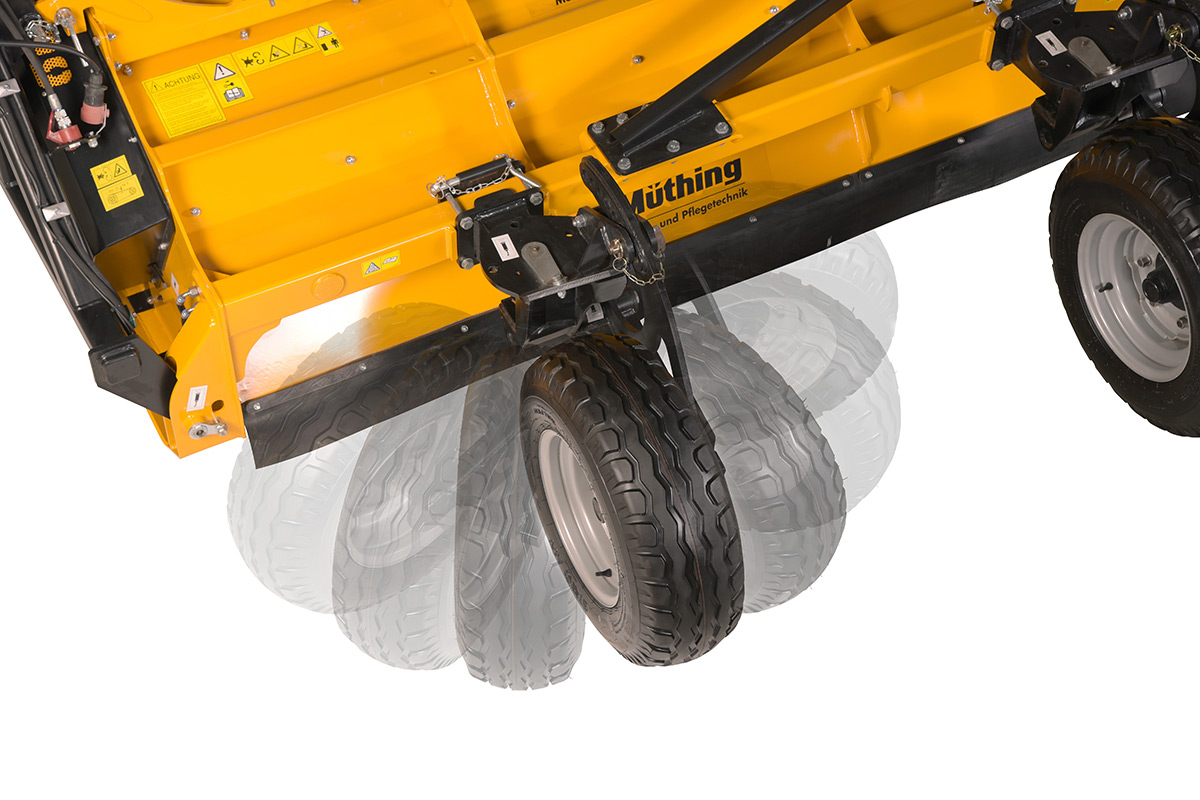

4 Low impact support wheels for vertical adjustment of the MU-Farmer® unit for rear attachment. 180° swiveling for high maneuverability at the headland.
4 Low impact support wheels for vertical adjustment of the MU-Farmer® unit for rear attachment. 180° swiveling for high maneuverability at the headland.
Robust, simple operation, sturdy
Your benefits
- Blockage-free processing of large quantities of organic matter even under adverse conditions
- Heavy rolled MU-Farmer hammer flails with 3-year warranty against breakage
- Offers the highest cutting speed on the market and therefore optimum shredding
- Robust design with full-length housing offers maximum stability
The functionality
- Large rotor with very high cutting speed
- Large-volume trailing support wheels for maximum ground protection and operating reliability
- Heavy-duty MU-Farmer® hammer flails for extremely long service life
- Double “shark fin” short chopping bar ensures optimum flow of material and mulching result
- Easily operated lengthways transport device for quick field changes
Machine equipment
- Suitable for driving powers from 240 – 300 HP
- Working width 6.70 m
- Spiral rotor with MU-Farmer® hammer flails
- Automatic belt tensioning as standard
- Hardox wear insert as standard
- Two rows of highly tempered spring steel flaps with swing protection as standard
Mit dem Laden des Videos akzeptieren Sie die Datenschutzerklärung von YouTube.
Mehr erfahren
Technical information
| MU-FARMER 670 | 670 |
|---|---|
| Working width (cm) | 670 |
| External width (cm) | 712 |
| Transport length (cm) | 972 |
| Max. tractor hp 1000 rpm | 300 |
| Weight (kg) | 4.460 |
| Number of MU-Farmer® hammer flails | 44 |
Operating manual and spare parts list as PDF for download
